Product Details
Product Overview:

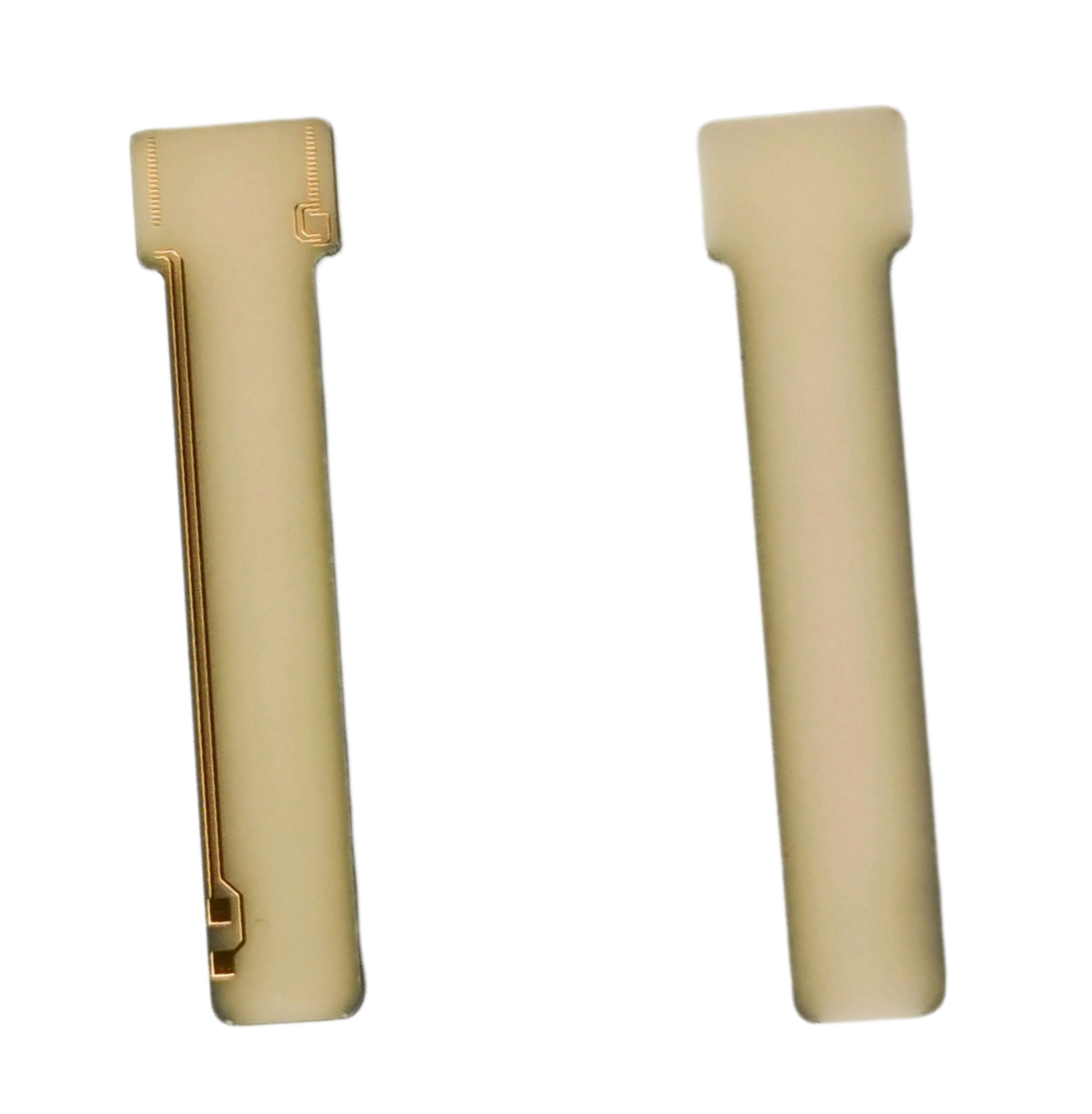

Experience the pinnacle of ceramic miniaturization. Our custom-shaped Alumina micro-probes are designed for ultra-narrow space integration, such as medical endoscopes, fiber optic modules, and high-frequency ultrasonic transducers. Featuring state-of-the-art DPC/Thin-Film metallization with trace resolutions down to 20μm, these substrates offer unparalleled signal integrity in a bio-compatible, high-strength ceramic package. Each piece is precision-machined to ensure flawless fitment into micro-sized industrial or surgical housings.
Technical Specifications (Datasheet):
| Parameter |
Technical Data / Specification |
| Substrate Material |
99.6% High-Purity Alumina ($Al_2O_3$) / Bio-Compatible Grade |
| Metallization Tech |
High-Precision DPC (Direct Plated Copper) / Thin-Film Sputtering |
| Pattern Resolution |
Min. Line Width/Space: 20μm - 50μm (Ultra-Fine) |
| Surface Finish |
Thick Soft Gold (Au) / ENIG (Optimized for precision wire bonding) |
| Shape / Geometry |
T-shaped / Micro-Blade / Paddle (Custom CNC or Laser Routed) |
| Thickness |
Ultra-thin options available (0.15mm / 0.25mm / 0.38mm) |
| Dimensional Tolerance |
± 0.01 mm (Strict precision for micro-assembly) |
| Dielectric Strength |
> 18 kV/mm (Excellent insulation for high-frequency probes) |
| Surface Roughness (Ra) |
< 0.1 μm (Polished surface for high-resolution patterning) |
| Main Applications |
Medical Endoscopes, Ultrasonic Transducers, PH/Flow Sensors, Micro-RF Antennas |
Manufacturing Advantage:
Handling brittle ceramics at a micro-scale requires exceptional engineering finesse. Our proprietary machining and photolithography processes allow us to create complex, non-rectangular geometries while maintaining razor-sharp circuit definitions. The bio-compatible nature of our high-purity Alumina ensures that these substrates meet the stringent requirements of the medical technology and aerospace sectors, providing a reliable platform for your most sensitive micro-sensing applications.
*Note: Probe length, paddle width, and circuit patterns are 100% customizable. We support low-volume prototyping for R&D. Please upload your 3D STEP or Gerber data for a confidential review.
