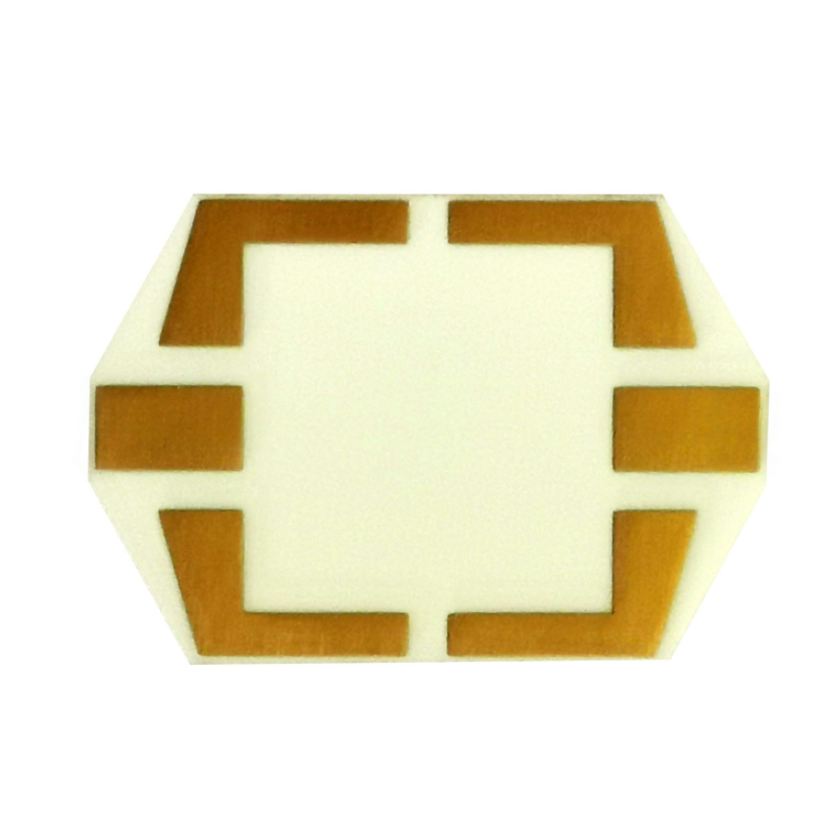

Hexagonal Alumina Ceramic Substrate for Power Bridge Rectifiers

Size
Carbon neutral
Secure payments

Product Details

Product Overview:

Optimize your space-constrained power modules with our custom hexagonal ceramic substrates. Specifically designed for bridge rectifiers, high-power transistors (MOSFET/IGBT), and specialized sensor headers, this substrate features a precision-chamfered geometry for perfect fitment into circular housings or compact enclosures. Utilizing high-adhesion DPC or Thick Film metallization, the perimeter pad layout ensures low-resistance electrical connections while the central alumina core provides maximum thermal spreading and high-voltage isolation.

Technical Specifications (Datasheet):

Parameter Technical Data / Specification
Substrate Material 96% / 99.6% High-Purity White Alumina ($Al_2O_3$)
Board Geometry Hexagonal / Chamfered Rectangle (Custom Shape)
Metallization Tech High-Precision DPC (Direct Plated Copper) / Thick Film
Pad Configuration Perimeter L-shaped & Rectangular Pads (Optimized for Wire Bonding)
Surface Finish Bare Copper / ENIG (Electroless Nickel Immersion Gold)
Thermal Conductivity 24 - 35 W/m·K (Optimized for high-current thermal loads)
Dielectric Strength > 15 kV/mm (Ensuring safety for high-voltage rectifiers)
Copper (Cu) Thickness 35 μm - 75 μm (Tailored for heavy-duty power cycling)
Dimensional Tolerance ± 0.05 mm (Strict control for mechanical housing fitment)
Insulation Resistance > $10^{14}$ $\Omega \cdot cm$
Main Applications Power Bridge Rectifiers, MOSFET/IGBT Packaging, Pressure Sensors, RF Headers

Manufacturing Advantage:

Our precision CNC or laser-shaping technology ensures that every hexagonal edge and chamfer is clean and burr-free, preventing mechanical stress during your assembly process. The robust metallization layer is specifically formulated to withstand multiple thermal cycles and high-torque soldering, ensuring that your power modules remain reliable even in the harshest industrial or automotive environments.

*Note: Hexagon dimensions, pad layout, and metallization thickness are 100% customizable. Please upload your STEP file or Gerber data for an immediate engineering review.
